Core Concepts

The building blocks behind Bitnob Enterprise wallet infrastructure.

Understanding these concepts will help you model your integration correctly and configure policies that reflect your actual security requirements.

Custody Model

Bitnob Enterprise is non-custodial by default. Private keys are generated inside the Bitnob Secure Enclave — a key management system built on AWS Nitro Enclaves — and never leave that hardware boundary.

The platform itself cannot move funds without an authenticated API call that satisfies every configured policy. Every signing event is recorded as an immutable activity entry for compliance and audit.

Keys are generated in hardware isolation. No process outside the enclave ever sees the raw private key material.

Policies run before signing. The enclave only releases a signature when the authenticated request satisfies every rule in every active policy.

Bitnob cannot unilaterally move funds. There is no admin backdoor. Root quorum governance applies even to Bitnob-side operations on your organisation.

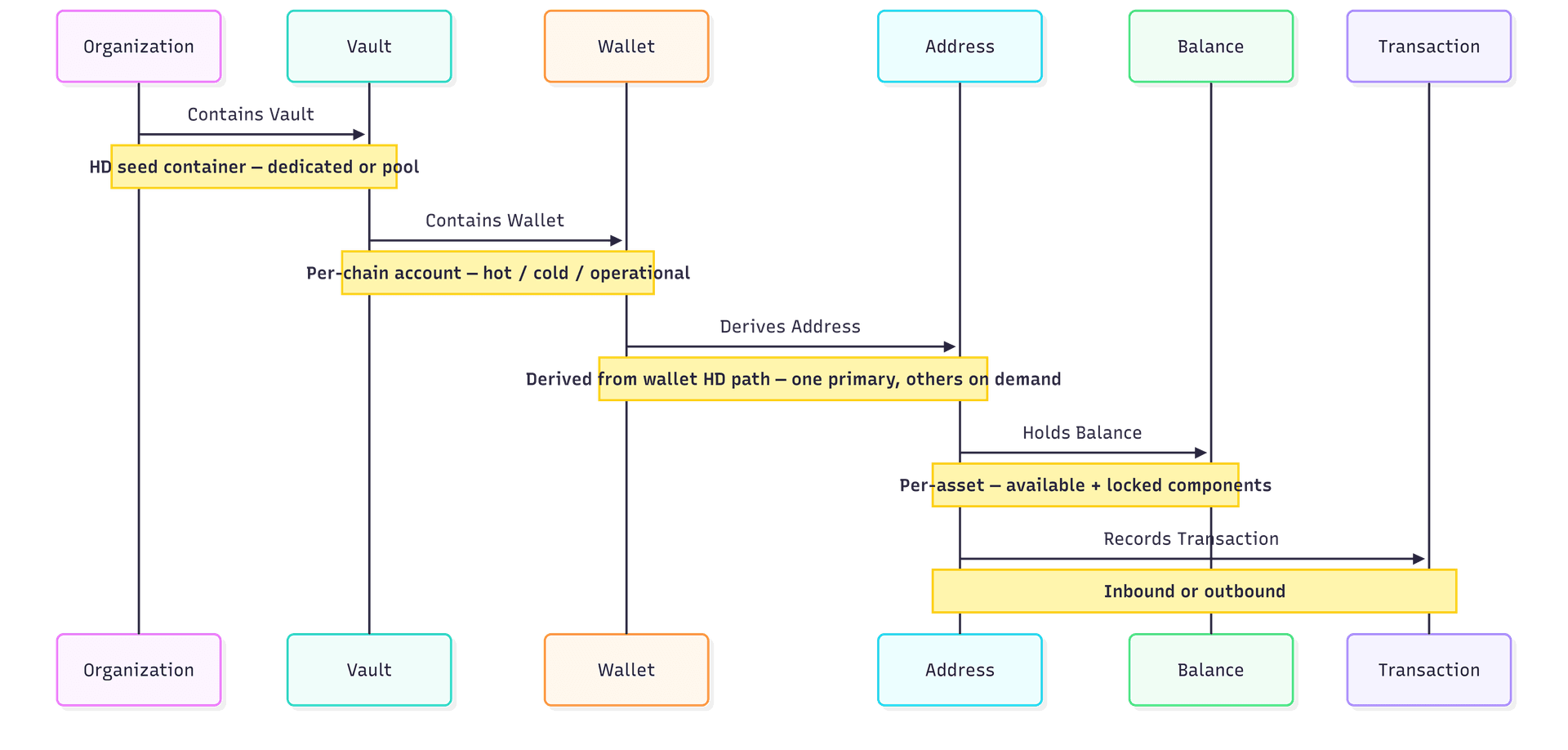

Resource Hierarchy

All resources are strictly nested. Understanding this hierarchy is essential for designing your wallet topology.

Organisation — The top-level tenant. All resources are scoped to your organisation, derived automatically from your API key.

Vault — An HD seed container. A dedicated vault maps 1-to-1 with a single wallet per chain. A pool vault holds unlimited wallets, ideal for assigning one per customer.

Wallet — A logical account derived from a vault's seed, scoped to a specific chain. Holds multiple asset balances and owns all addresses derived from it.

Address — A blockchain address derived from the wallet's HD path. Each wallet gets one primary address per chain; additional addresses can be derived on demand.

Vault Types

Choose the vault type that matches your use case. The choice is irreversible — upgrading a dedicated vault to a pool vault cannot be undone.

type	wallets per chain	best for
dedicated	1	Treasury accounts, operational hot wallets, cold storage
pool	Unlimited	Exchanges, neobanks, any platform assigning one wallet per customer

Wallet Types

type	description
hot	Online, actively signing transactions. Suitable for customer deposit and withdrawal wallets.
cold	Offline storage. Requires elevated approval thresholds configured in your policies before the enclave will sign.
operational	System-managed wallets used for gas stations and internal fund sweeps. Not directly customer-facing.

Policy Engine

A policy is a declarative rule that runs before the Bitnob Secure Enclave signs a transaction. Policies are organisation-scoped and evaluated by category in priority order — the first matching rule wins.

action	effect
block	Reject the transaction outright. No signing occurs.
alert	Allow the transaction but notify stakeholders.
require_approval	Pause the transaction in pending_authorization until enough approvers vote.
delay	Queue the transaction for deferred execution.

Policies are evaluated by category:

access — who can access which wallets

whitelist — restrict destinations to known addresses only

limits — per-transaction spending caps

approvals — multi-signature requirements

velocity — daily, weekly, or monthly volume controls

compliance — regulatory controls

quorum — root-level governance for policy changes themselves

Approvals and Root Quorum

When a policy fires require_approval, an approval request is created and the transaction stops at pending_authorization. Approvers then vote:

Once the required number of approvals is reached, the transaction proceeds automatically

If any approver rejects, the transaction terminates as rejected

A root quorum is a special policy of category quorum that protects policy changes themselves. When a root quorum is active, creating, editing, or deleting any policy also requires quorum approval — preventing any single administrator from unilaterally weakening your security controls.

Security recommendation

Configure a root quorum before deploying to production. Without one, any API key with admin permission can modify policies unilaterally.

Gas Stations

A gas station is a pre-funded, organisation-owned account whose sole job is to sponsor transaction fees on behalf of customer wallets.

Gas stations are scoped per chain and network

When a customer wallet has insufficient native gas, the gas station tops it up automatically before broadcasting

Each gas-sponsored transfer emits a separate gas_sponsorship transaction linked to the original via sponsor_tx_id

On Tron, gas stations support TRX staking and resource delegation — stake once for energy and bandwidth so USDT transfers cost near-zero TRX

Set an auto_refill_enabled threshold and a refill_from_wallet_id so the gas station tops itself up when its balance runs low. Monitor health via GET /gasstations/stats.

Address Book

The address book is an organisation-level allowlist of named, validated recipient addresses. It works alongside whitelist policies to restrict outbound transfers to only known, pre-approved destinations.

Address book entries are immutable — the on-chain address string cannot be edited after creation. To change a destination, delete the entry and re-add it.

Addresses are validated against the specified chain at creation time.

Pair address book entries with a whitelist category policy to block all outbound transfers to non-whitelisted addresses.

Transaction Lifecycle

Every outbound transaction moves through a defined set of statuses. Understanding these helps you design correct webhook handlers and UI states.

status	description
pending_signature	Transaction created. Awaiting Enclave signing.
pending_authorization	A policy requires multi-party approval. Transaction is paused until approvers vote.
signed	Signed by the Enclave. Not yet broadcast.
awaiting_sponsorship	Native gas is being transferred from a gas station before broadcast.
broadcasting	Submitted to the blockchain network.
confirming	On-chain and accumulating block confirmations.
completed	Confirmed with sufficient confirmations. Terminal.
failed	Errored at any stage. Terminal.
cancelled	Cancelled by the requester before broadcast. Terminal.
rejected	An approver denied the approval request. Terminal.
